The wheel/ rail interface is one of the most critical subsystems in the railway, yet it is also one of the least intuitive. At its most basic level, it is simply a steel wheel running on a steel rail. In practice, it is the point at which every force required to move, guide, and stop a train is transmitted. This interaction takes place through an extremely small contact area, typically around 10 to 15 millimetres across, yet it must safely support the weight of the vehicle, accommodate changes in speed and direction, and respond to constantly changing track and environmental conditions.
Because the contact area is so small, the forces acting at the wheel/ rail interface are extremely high. Each wheel may support several tonnes of load, and that load is concentrated into a contact patch not much larger than a coin. The key idea here is not the complexity of the calculation, but the principle that force concentrated over a small area creates very high pressure. If the same weight were spread over a much larger surface, the stress would be far lower. At the wheel/ rail interface, this concentration of force explains why the rail and wheel are both subject to wear, fatigue, and damage over time, even though they are made from very high-strength steel.
At the point where the wheel meets the rail, immense pressures are generated. Typical contact stresses at the wheel–rail interface can reach around 145,000 psi (approximately 1,000 MPa) — far higher than those seen in most structural engineering applications.
These extreme stresses occur because the load from a single wheel — often 8–12 tonnes for passenger vehicles, and significantly more for freight — is concentrated into an extremely small contact area, typically no larger than a coin.
Pressure is simply the amount of force applied over a given area:
Pressure = Force ÷ Area
If a single wheel carries a vertical load of 100 kN (roughly 10 tonnes) and that load is transmitted through a contact patch of about 100 mm², the pressure generated is:
100,000 N ÷ 0.0001 m² ≈ 1,000 MPa
This explains why the wheel/ rail interface is highly sensitive to condition, geometry, and material quality. Even small changes in wheel profile, rail wear, or surface condition can significantly alter how these stresses are distributed, accelerating wear, fatigue, or damage if not carefully managed.
This explains why the wheel/ rail interface is highly sensitive to condition, geometry, and material quality. Even small changes in wheel profile, rail wear, or surface condition can significantly alter how these stresses are distributed, accelerating wear, fatigue, or damage if not carefully managed.

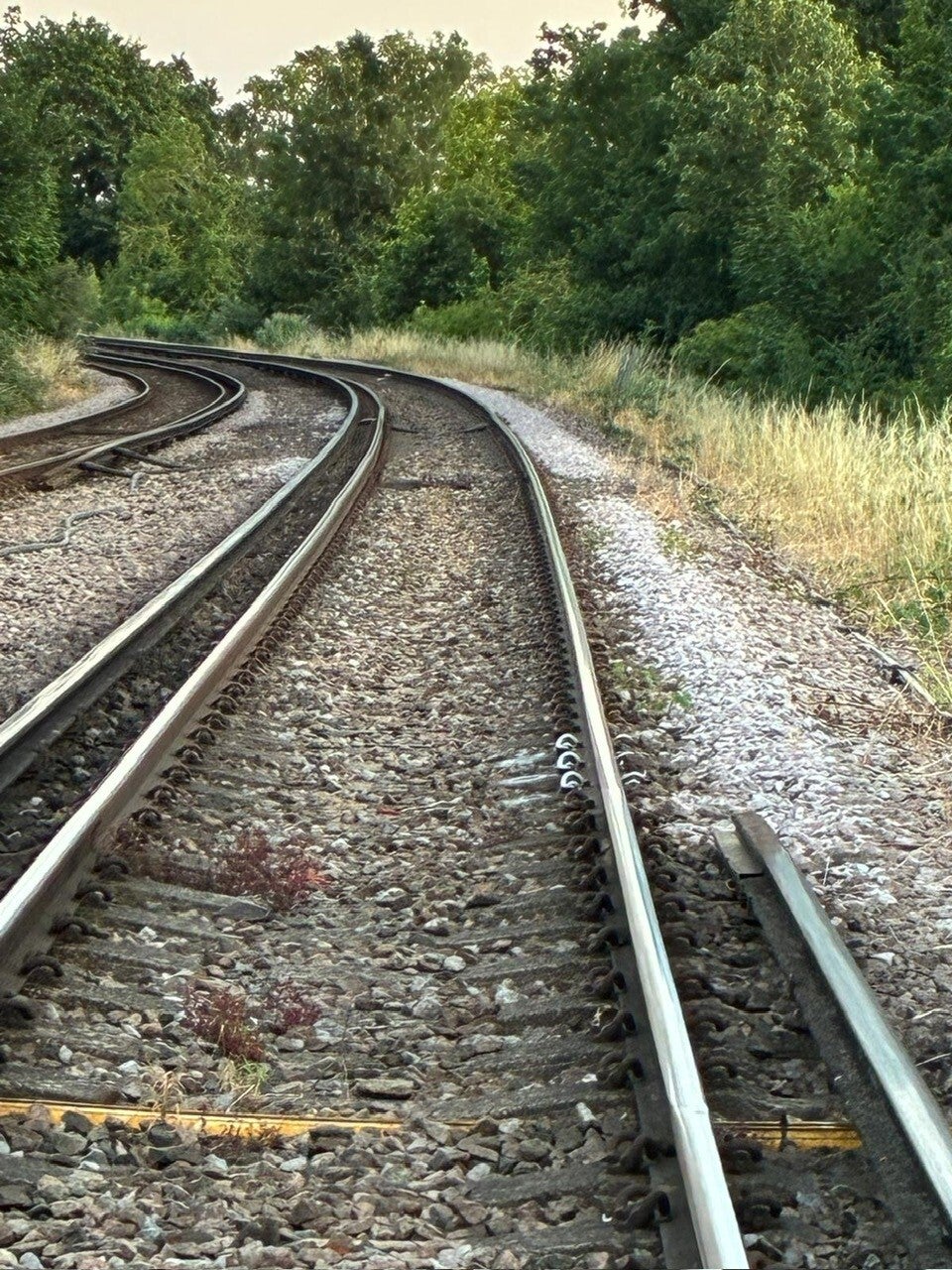

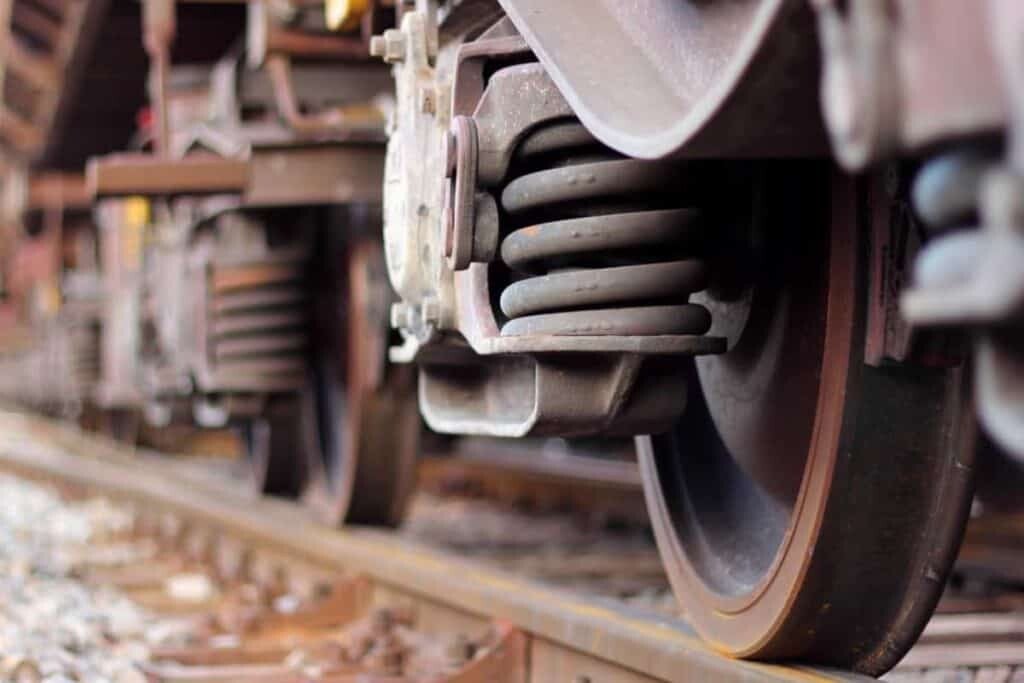

The wheel itself plays a critical role in managing these forces. Railway wheels are not flat; they are typically conical in shape, a design that enables natural steering. When a train enters a curve, the wheelset shifts laterally so that the outer wheel runs on a slightly larger rolling radius than the inner wheel. Because both wheels are fixed to the same axle, this difference in rolling radius allows the wheelset to negotiate the curve smoothly without excessive slipping. This phenomenon reduces flange contact, lowers wear, and improves ride quality.
The design of the wheel and rail helps manage these extreme conditions. Railway wheels are typically conical rather than flat. This conicity allows trains to steer naturally through curves. As a train enters a curve, the wheelset shifts sideways, causing the outer wheel to run on a slightly larger rolling radius than the inner wheel. Because both wheels are fixed to the same axle, this difference in rolling radius allows the wheelset to follow the curve without significant slipping. This design reduces flange contact, limits wear, and improves ride comfort, while also maintaining stability at speed.

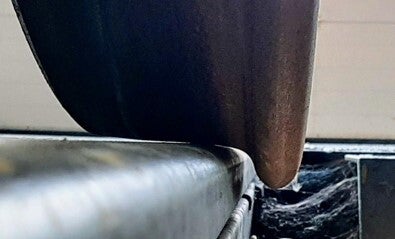

The rail profile complements the wheel shape and helps control how forces are distributed across the rail head. However, this relationship is not static. As wheels wear and rails deform, the shape of the contact patch changes. If this relationship is not actively managed through maintenance activities such as wheel reprofiling and rail grinding, contact stresses can increase significantly. This can accelerate the development of rail defects and degrade vehicle performance. Image Credit - The Contact Patch
One of the most important roles of the wheel/ rail interface is enabling braking. Train braking systems work by converting the kinetic energy of a moving train into heat through friction. This is achieved using tread brakes, disc brakes, or blended systems that combine friction braking with electrical braking from traction motors. When a braking demand is made, the braking system applies a resisting force to the wheel, reducing its rotational speed. However, the braking system does not act directly on the track. Instead, all braking forces must pass through the wheel/ rail interface.
This is where adhesion becomes critical. Adhesion is the available grip between the wheel and the rail. Unlike road vehicles, trains operate with relatively low levels of grip. A useful way to understand this is to think in terms of proportion rather than precise numbers. Only a small fraction of the wheel’s vertical load is available as usable braking force. If the rail is clean and dry, braking is efficient. If the rail is wet, contaminated with leaves, or affected by oil or rust, the available grip reduces significantly.
If the braking force applied by the train exceeds the available adhesion, the wheel will no longer roll smoothly and will begin to slide. Sliding wheels damage both the wheel and the rail, create wheel flats, increase stopping distances, and raise safety risks. To prevent this, modern trains use Wheel Slide Protection systems, which continuously monitor wheel rotation and adjust braking force to keep the wheel operating in a controlled rolling condition. This process relies on a small amount of controlled micro-slip, often referred to as creep, which is essential for effective braking.
The condition of the rail surface has a direct influence on how well braking systems perform. A smooth, clean railhead provides predictable adhesion. A damaged or contaminated railhead reduces grip and forces braking systems to work harder to achieve the same stopping performance. This is why railhead treatment, rail cleaning trains, and seasonal adhesion management strategies are so important to safe railway operation.
Track geometry also plays a major role in wheel–rail behaviour during braking. Geometry faults such as dips, twists, poor alignment, or uneven cant change how load is distributed between wheels. When load is uneven, some wheels may carry less weight than others, reducing the available adhesion at those wheels. This makes braking less effective and increases the likelihood of wheel slide. Even small geometry defects can therefore have a disproportionate effect on braking performance, particularly in low-adhesion conditions.

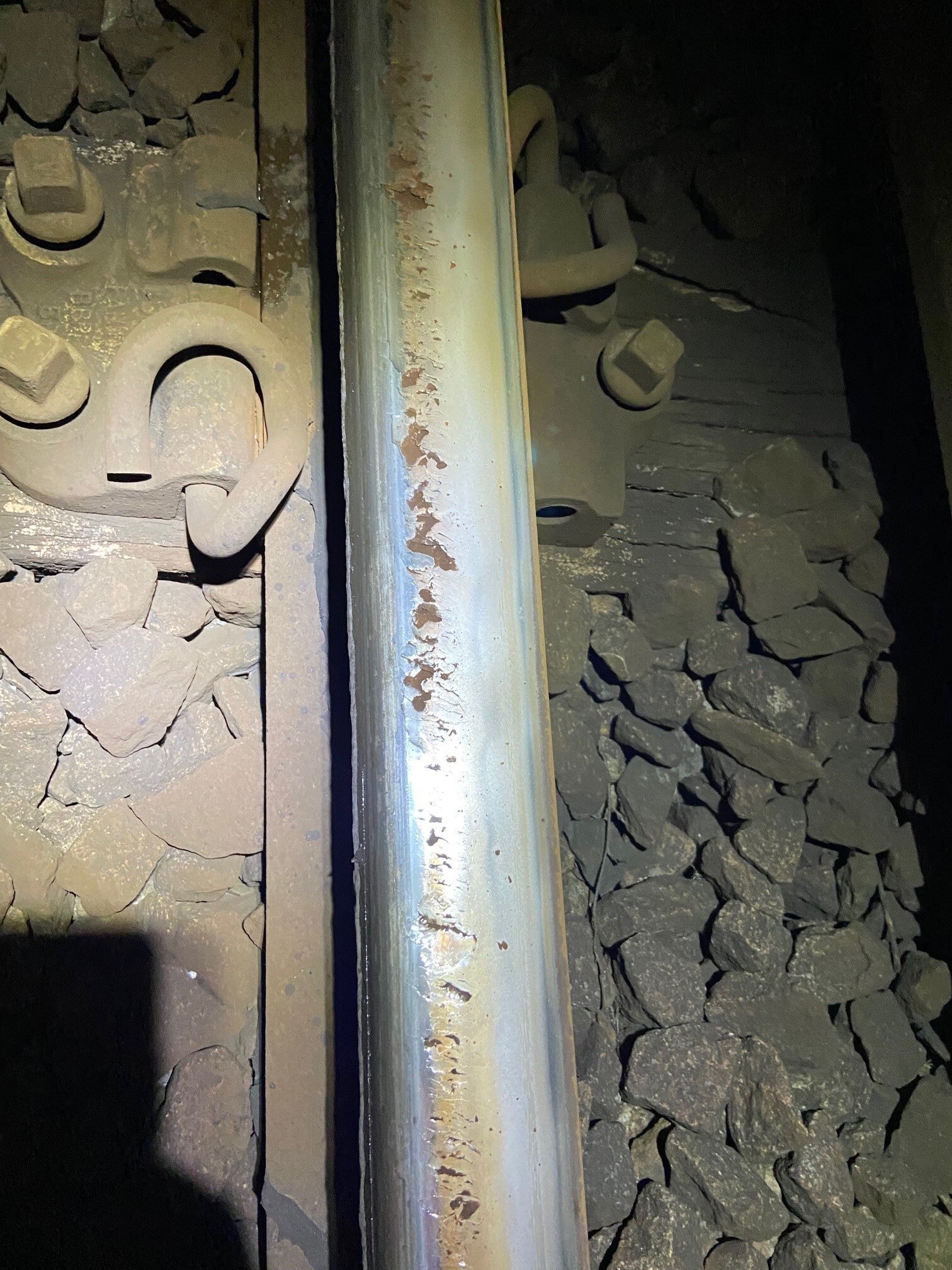

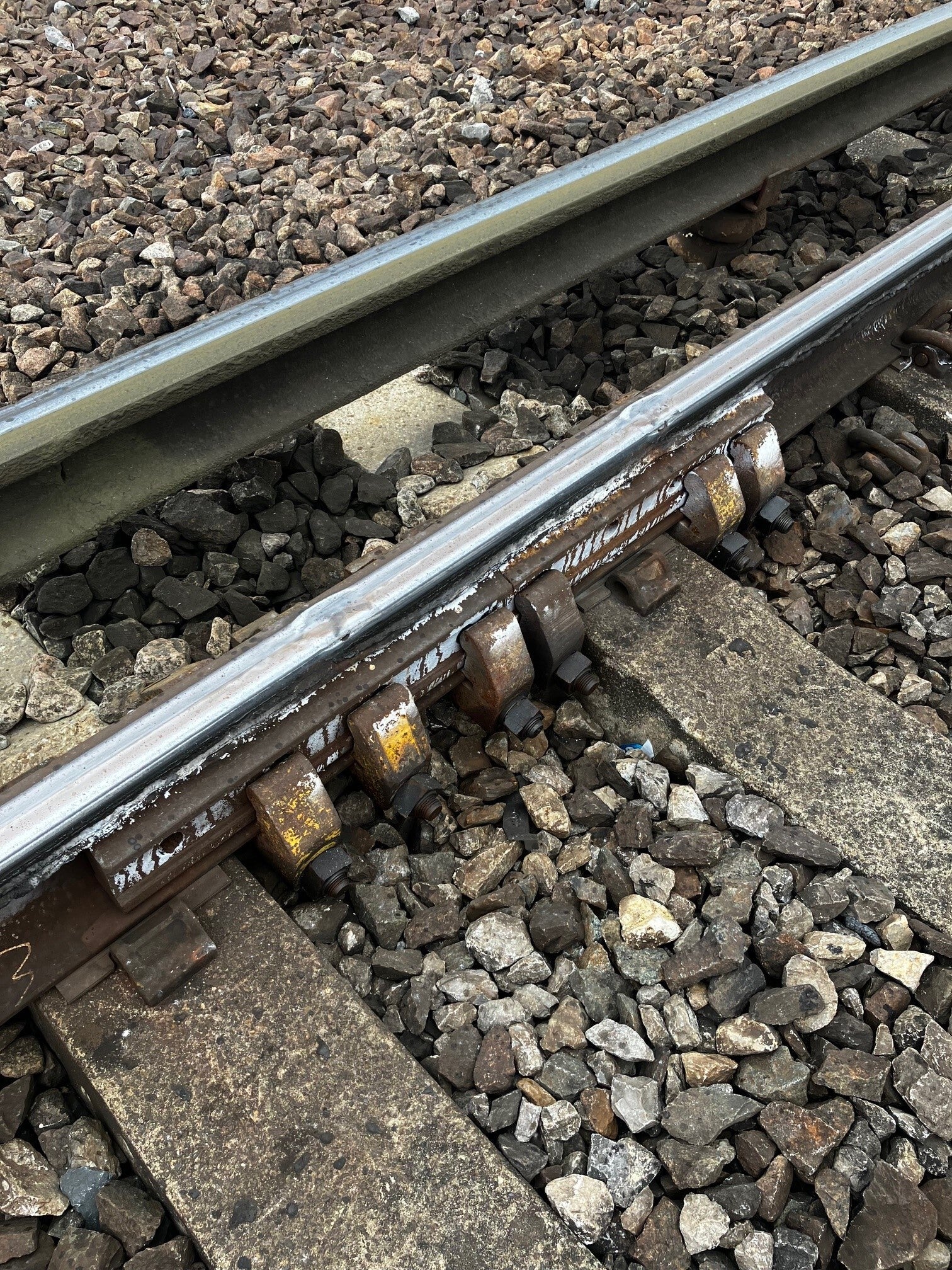

Rail defects further complicate this interaction. Rolling contact fatigue is one of the most common rail defects associated with the wheel–rail interface. It develops when repeated stress cycles exceed the fatigue strength of the rail steel, leading to microscopic cracking. These cracks often initiate at or near the running surface and can grow over time if not removed. Braking and traction forces increase the stress range experienced by the rail, accelerating fatigue damage. Other defects, such as wheelburns caused by sliding wheels, can introduce localised thermal and mechanical damage that further weakens the rail.

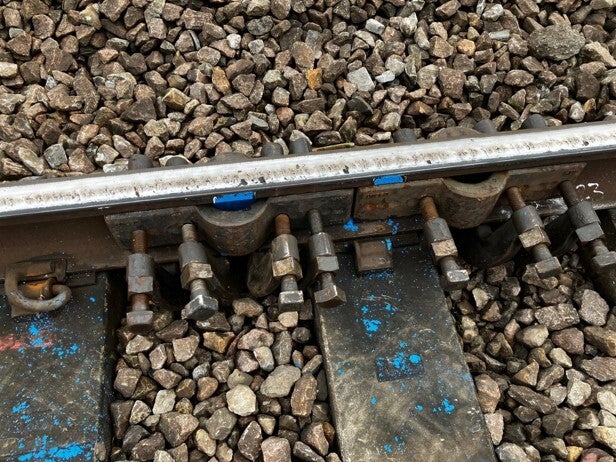

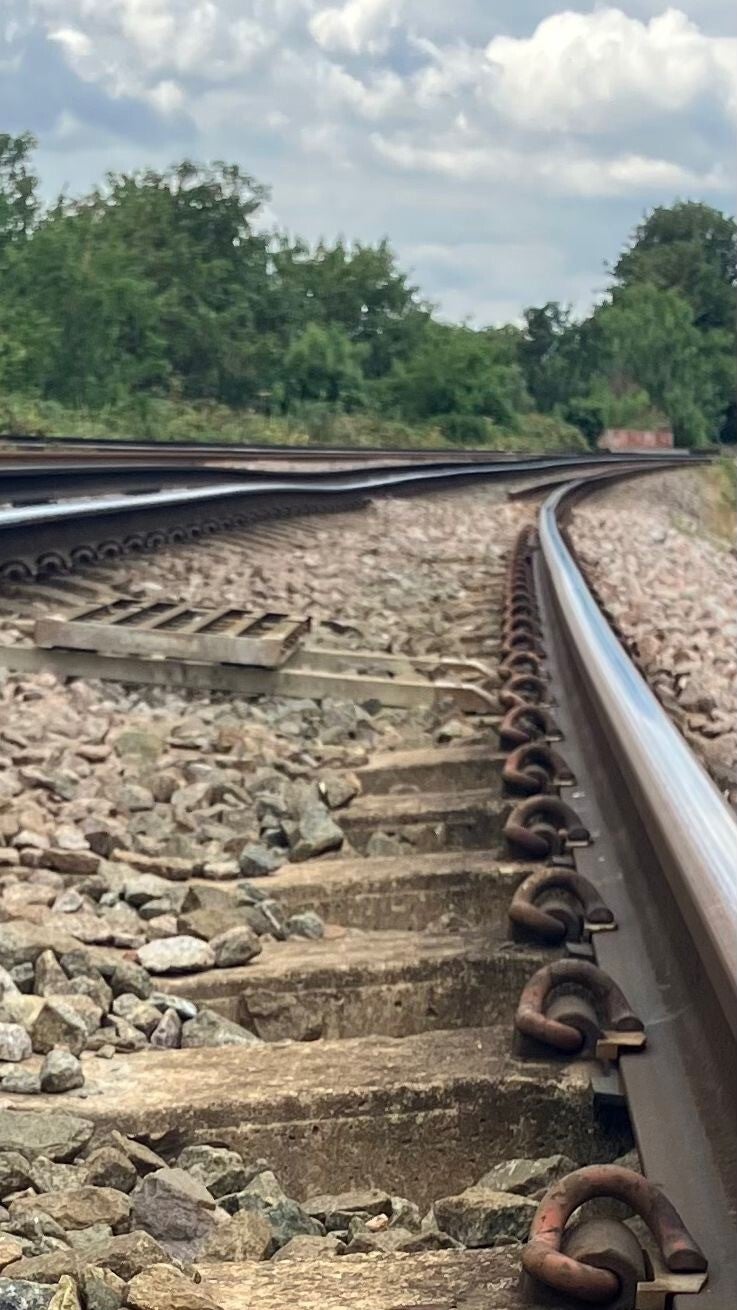

Beneath the rail, the supporting track structure influences how forces are absorbed and distributed. Sleepers and fastenings maintain gauge and alignment, ensuring consistent wheel/ rail contact. Ballast and formation layers distribute loads into the ground and help damp dynamic forces. If these supporting layers are compromised through poor drainage, ballast degradation, or loss of stiffness, dynamic wheel loads increase. This in turn increases stress at the wheel/ rail interface, reducing adhesion stability and accelerating wear and defect growth.
What makes the wheel/ rail interface particularly challenging is that it cannot be managed by focusing on a single component or discipline. Braking performance depends not only on the brake system itself, but also on wheel condition, rail surface condition, track geometry, environmental factors, and operational practices. Changes made in one area will almost always influence performance elsewhere. For example, increasing rail lubrication may reduce wear but can also reduce available adhesion for braking. Improving wheel profiles may reduce curving forces but alter contact stresses on the rail.
This interdependence is why the wheel/ rail interface must be understood using systems thinking. It sits within a system of systems that includes rolling stock, infrastructure, environmental conditions, and operational controls. Effective management requires engineers to consider how these elements interact, rather than treating them as isolated problems. By viewing the wheel/ rail interface in this holistic way, engineers can better predict performance issues, understand the root causes of defects, and develop solutions that improve safety, reliability, and asset life across the whole railway system.
In summary, the wheel/ rail interface is where railway engineering becomes most concentrated. It is a small area carrying enormous responsibility, enabling trains to move, steer, and stop safely. Braking systems, track geometry, rail condition, and environmental influences all converge at this point. Understanding how these elements interact, and managing them as part of a wider system, is essential to delivering a safe, efficient, and resilient railway.
